ARMOUR STONE FACILITY
PROJECT INFORMATION

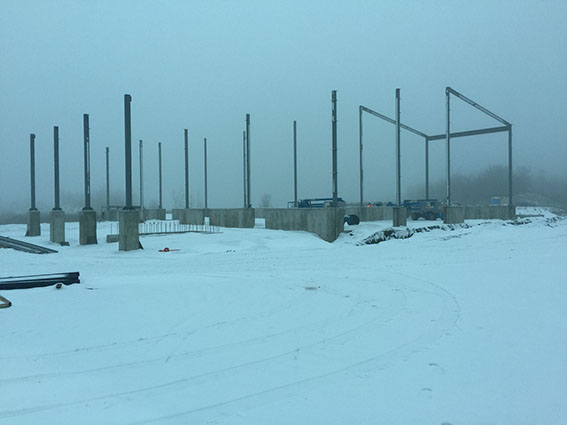

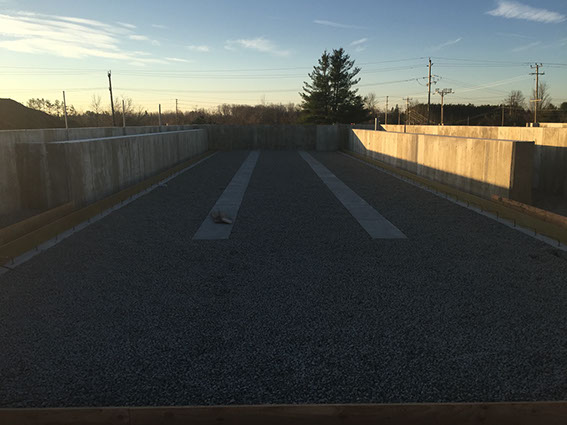

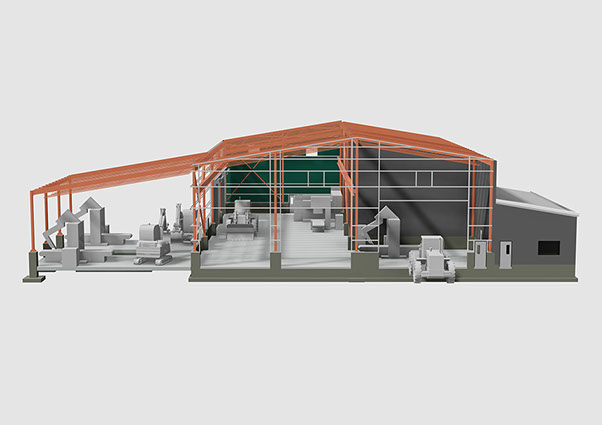

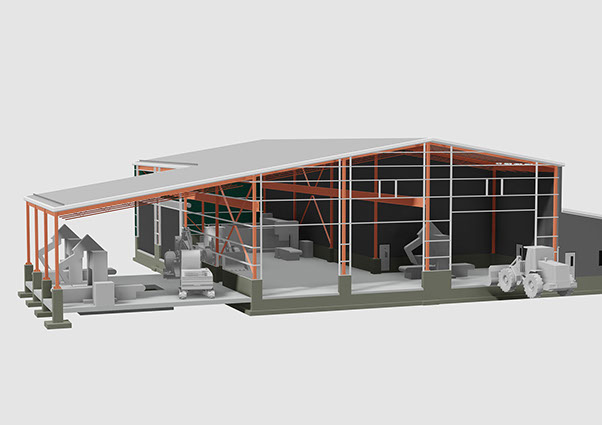

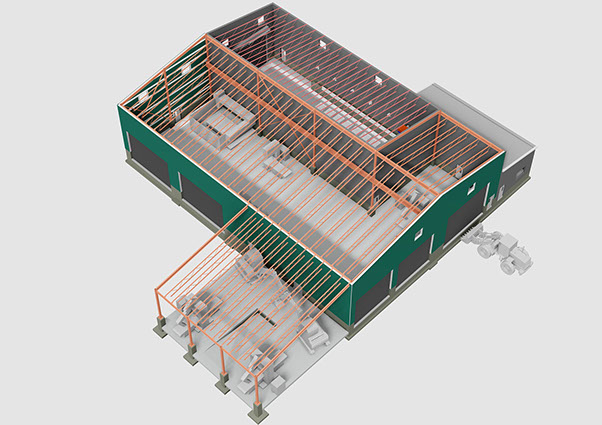

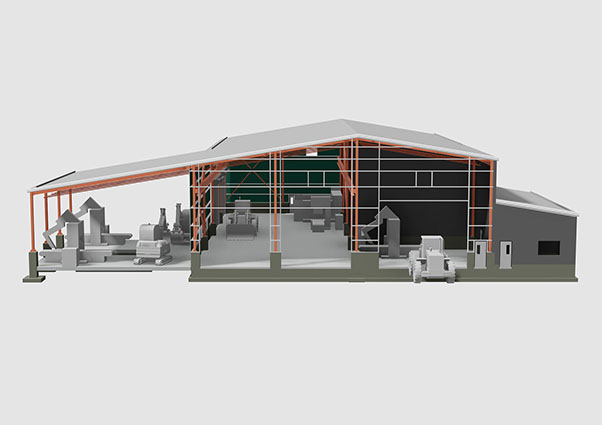

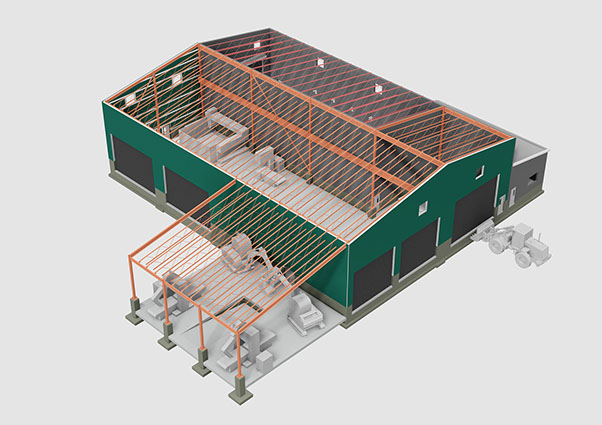

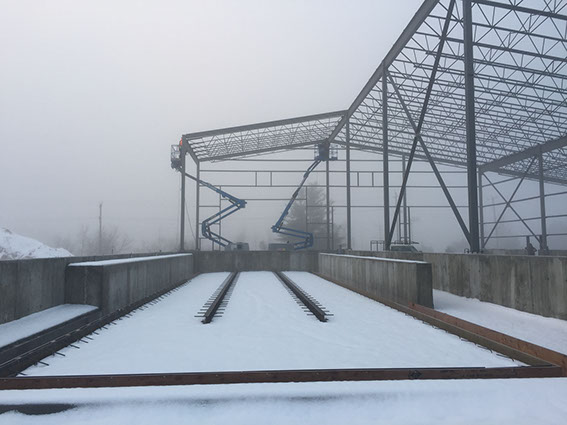

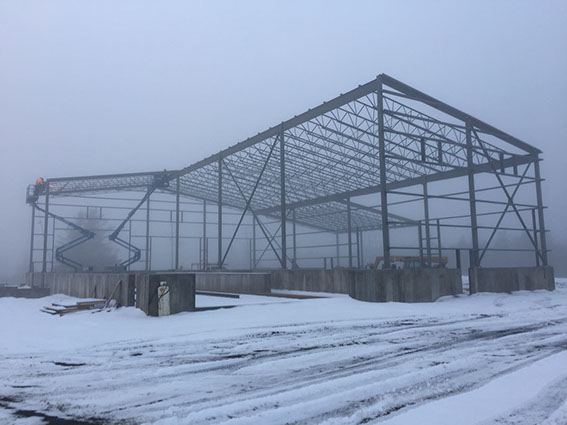

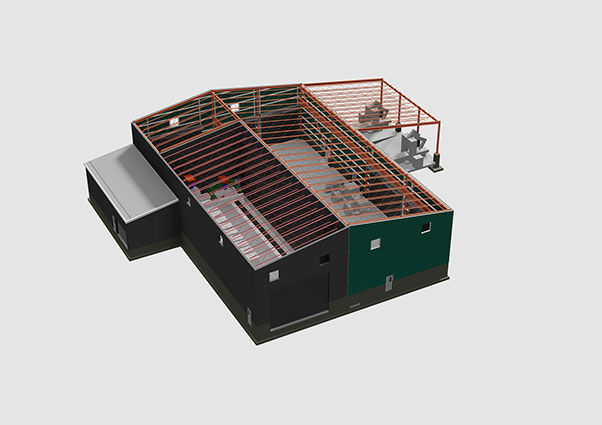

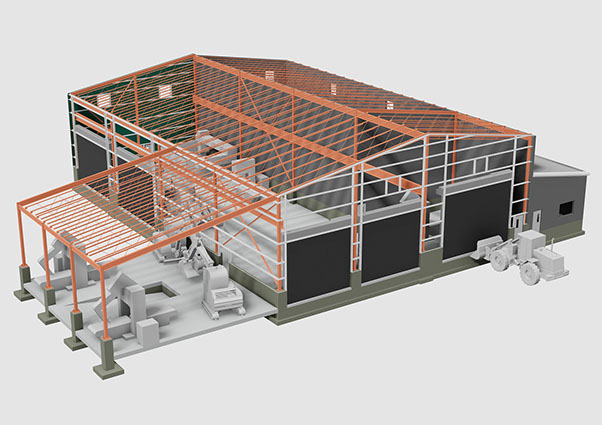

Rosebush Wilson and Associates Inc., in collaboration with JDM Designworks Inc., provided site planning, construction drawings, and construction management services for the erection for a building used for CNC saws, guillotines, and ancillary equipment necessary to produce armour stone and other cut stone products at Drain Bros Excavating Ltd.'s Havelock Site.
|<<
>>|
10 - 12
<
>
DRAIN BROS EXCAVATING Ltd.
Havelock, Ontario
TARGET: Summer 2017
$2,500,000 CAD
CLIENT:
LOCATION:
PROJECT COMPLETION:
PROJECT COSTS:
OUR ROLE
- General Arrangements
- Equipment Layout
-
Process Documentation:
- P&ID's
- Pipe Specifications
-
Engineering Drawings:
- Civil
- Structural
-
Construction Drawings:
- Civil
- Mechanical
- Structural
- Electrical
- Permitting
- Commissioning Support
